Generating Single Frame PSFs with spike
Some of the utility of spike is baked into the fact that it creates PSFs for individual images/coordinates using consistent syntax across a variety of different PSF generation methods. Even outside of cases where a drizzled/resampled PSF would be useful, these image-specific PSFs can be generated quickly and easily.
This example notebook assumes that you have all of the optional PSF generation dependencies installed – i.e., TinyTim, PSFEx (and SExtractor), and STPSF (formerly WebbPSF). It uses the following HST and JWST files (also used in generating the Polzin 2025 figures and in the other example notebooks):
j8pu42ecq_flc.fits (HST/ACS; observation ID j8pu42010)
jw02514162001_03201_00001_nrca2_cal.fits (JWST/NIRCam; observation ID jw02514162001_03201_00001_nrca2)
The data used in this example is available for download from MAST (via search) or here.
Other than using paths for these data, the syntax is generic and servers as a guide for use with other data.
[1]:
from spike import psfgen
from spike.tools import objloc, checkpixloc, cutout
# spike will save images of single frame PSFs if 'plot = True', but
# to display output PSFs in this notebook, we'll import the following
import matplotlib.pyplot as plt
import numpy as np
# to demonstrate the save feature and read in output files
from astropy.io import fits
from astropy.wcs import WCS
import astropy.units as u
The spike.psfgen and spike.tools functions take image paths as inputs, so we’ll define those for our example files below:
[ ]:
hstimg = '/path/to/j8pu42ecq_flc.fits'
jwstimg = '/path/to/jw02514162001_03201_00001_nrca2_cal.fits'
We’ll also define some example objects, which are the locations for which the PSFs will be generated. spike.tools.objloc takes as argument sexagecimal or degree coordinates or a Simbad-resolvable target name. (Equivalently, you can feed spike an astropy.SkyCoord object, though objloc handles formatting and target resolution automatically.)
[3]:
hstobj = objloc('10:00:33.0178 +02:09:52.304')
jwstobj = objloc('10:00:31.432 +02:10:26.29')
Now we’ll use spike.tools.checkpixloc to get more information about the target in the context of the images – the output of spike.tools.checkpixloc is a list, which follows [X, Y, chip, filter], based on the target coordinates and image headers and WCS. (Equivalently, you can feed spike a list that contains those same entries, but as above, checkpixloc is intended to handle this automatically, including returning NaNs if the object does not fall within the specified frame.)
[4]:
hstpos = checkpixloc(coords = hstobj, img = hstimg, inst = 'ACS', camera = 'WFC')
jwstpos = checkpixloc(coords = jwstobj, img = jwstimg, inst = 'NIRCam')
2025-05-12 16:03:13,537 - stpipe - WARNING - /Users/avapolzin/opt/anaconda3/envs/spike/lib/python3.10/site-packages/astropy/wcs/wcs.py:805: FITSFixedWarning: 'datfix' made the change 'Set DATE-BEG to '2024-01-06T21:41:23.047' from MJD-BEG.
Set DATE-AVG to '2024-01-06T21:47:54.939' from MJD-AVG.
Set DATE-END to '2024-01-06T21:54:26.831' from MJD-END'.
2025-05-12 16:03:13,538 - stpipe - WARNING - /Users/avapolzin/opt/anaconda3/envs/spike/lib/python3.10/site-packages/astropy/wcs/wcs.py:805: FITSFixedWarning: 'obsfix' made the change 'Set OBSGEO-L to 96.501634 from OBSGEO-[XYZ].
Set OBSGEO-B to 8.973245 from OBSGEO-[XYZ].
Set OBSGEO-H to 1686306457.041 from OBSGEO-[XYZ]'.
[5]:
hstpos, jwstpos
[5]:
([1020.4395296389423, 181.38330292850168, 2, 'F475W'],
[536.216683711077, 1095.4223004832825, 'NRCA2', 'F115W'])
From the checpixloc outputs, we can see where the target is located on the image (in pix), that for each instrument, the object falls on chip 2, and that the images use F475W (HST) and F115W (JWST).
Now all that’s left is to actually generate the single frame PSFs using spike.psfgen. By default, spike.psf uses TinyTim (HST) and STPSF (formerly WebbPSF; JWST and Roman), so we’ll start by generating PSFs with those methods using only the default parameters.
If writeto = True, spike.tools.rewrite_fits will place the PSF model in the context of the full input image and save it as a .fits file. For this notebook, we will use writeto = False, so that no additional outputs are generated beyond those created by the PSF generation methods themselves (e.g., TinyTim generates .fits files containing model PSFs in your image directory).
[6]:
hstpsf = psfgen.tinypsf(coords = hstobj, img = hstimg, imcam = 'ACS/WFC', pos = hstpos,
writeto = False)
2025-05-12 16:03:18,324 - stpipe - WARNING - /var/folders/z4/0z0plfnn1s7fxvtsh_70vwyh0000gn/T/ipykernel_59283/2956791943.py:1: Warning: All of major, minor, and angle must be specified to be applied. Proceeding with no elliptical jitter.
Tiny Tim v7.5
Intermediate PSF dimensions are 464 by 464
Computing PSF for position 1/1 (x,y) = 1020 181
Computing PSF 1/18 for wavelength 393.82 nm (weight=0.008917)
Computing PSF 2/18 for wavelength 402.92 nm (weight=0.024755)
Computing PSF 3/18 for wavelength 412.02 nm (weight=0.037561)
Computing PSF 4/18 for wavelength 421.11 nm (weight=0.045079)
Computing PSF 5/18 for wavelength 430.21 nm (weight=0.052658)
Computing PSF 6/18 for wavelength 439.31 nm (weight=0.056584)
Computing PSF 7/18 for wavelength 448.41 nm (weight=0.059373)
Computing PSF 8/18 for wavelength 457.51 nm (weight=0.061140)
Computing PSF 9/18 for wavelength 466.61 nm (weight=0.064193)
Computing PSF 10/18 for wavelength 475.70 nm (weight=0.065803)
Computing PSF 11/18 for wavelength 484.80 nm (weight=0.067198)
Computing PSF 12/18 for wavelength 493.90 nm (weight=0.069242)
Computing PSF 13/18 for wavelength 503.00 nm (weight=0.070478)
Computing PSF 14/18 for wavelength 512.10 nm (weight=0.072073)
Computing PSF 15/18 for wavelength 521.20 nm (weight=0.071785)
Computing PSF 16/18 for wavelength 530.30 nm (weight=0.070366)
Computing PSF 17/18 for wavelength 539.39 nm (weight=0.069026)
Computing PSF 18/18 for wavelength 548.49 nm (weight=0.033769)
Writing PSF to /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf00_psf.fits
Started at Mon May 12 16:03:18 2025
Finished at Mon May 12 16:03:21 2025
Writing template optional parameter file for tiny3 to /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf.tt3.
To continue PSF processing for ACS and WFC3, you must run tiny3 to resample
and distort the PSF. You may also process a simulated scene (see
the manual for details).
Just to distort the PSF, issue this command :
tiny3 tiny.param
Tiny Tim v7.5
Processing PSF for position 1/1 : (x,y) = 1020 181
Reading input PSF from /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf00_psf.fits.
Input critically-sampled undistorted PSF dimensions are 464 by 464 (0.013018 arcsec/pixel).
Mapping PSF onto distorted grid.
Convolving PSF with charge diffusion kernel.
Writing distorted PSF to /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf00.fits (146 by 146 pixels)
Started at Mon May 12 16:03:21 2025
Finished at Mon May 12 16:03:21 2025
[7]:

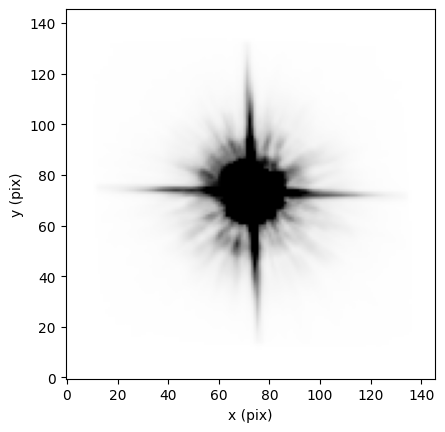

fig = plt.figure()
plt.imshow(hstpsf, vmin = np.nanpercentile(hstpsf, 20), vmax = np.nanpercentile(hstpsf, 97),
origin = 'lower', cmap = 'Greys')
plt.xlabel('x (pix)')
plt.ylabel('y (pix)')
[7]:
Text(0, 0.5, 'y (pix)')
[8]:

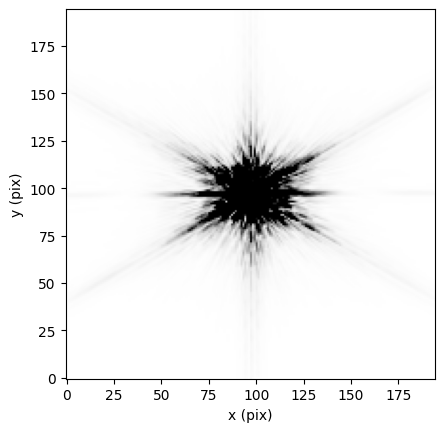

jwstpsf = psfgen.jwpsf(coords = jwstobj, img = jwstimg, imcam = 'NIRCam', pos = jwstpos,
writeto = False)
[9]:
fig = plt.figure()
plt.imshow(jwstpsf, vmin = np.nanpercentile(jwstpsf, 20), vmax = np.nanpercentile(jwstpsf, 97),
origin = 'lower', cmap = 'Greys')
plt.xlabel('x (pix)')
plt.ylabel('y (pix)')
[9]:
Text(0, 0.5, 'y (pix)')
spike gives users complete control over the PSF generation parameters via keyword arguments to spike.psfgen. All of the primary options are laid out in the spike documentation, and many functions take additional arguments that are detailed in the specific documentation for that PSF generation method (e.g., the STPSF – formerly WebbPSF –documentation).
For instance, we can generate a TinyTim PSF for an O-type star with Teff = 45000 K.
[10]:
hstpsf = psfgen.tinypsf(coords = hstobj, img = hstimg, imcam = 'ACS/WFC', pos = hstpos,
listchoice = 'O6', temp = 45000, writeto = False)
2025-05-12 16:03:44,727 - stpipe - WARNING - /var/folders/z4/0z0plfnn1s7fxvtsh_70vwyh0000gn/T/ipykernel_59283/1086459123.py:1: Warning: All of major, minor, and angle must be specified to be applied. Proceeding with no elliptical jitter.
Tiny Tim v7.5
Intermediate PSF dimensions are 464 by 464
Computing PSF for position 1/1 (x,y) = 1020 181
Computing PSF 1/18 for wavelength 393.82 nm (weight=0.018692)
Computing PSF 2/18 for wavelength 402.92 nm (weight=0.046730)
Computing PSF 3/18 for wavelength 412.02 nm (weight=0.064174)
Computing PSF 4/18 for wavelength 421.11 nm (weight=0.070042)
Computing PSF 5/18 for wavelength 430.21 nm (weight=0.074734)
Computing PSF 6/18 for wavelength 439.31 nm (weight=0.073655)
Computing PSF 7/18 for wavelength 448.41 nm (weight=0.071159)
Computing PSF 8/18 for wavelength 457.51 nm (weight=0.067712)
Computing PSF 9/18 for wavelength 466.61 nm (weight=0.065917)
Computing PSF 10/18 for wavelength 475.70 nm (weight=0.062852)
Computing PSF 11/18 for wavelength 484.80 nm (weight=0.059882)
Computing PSF 12/18 for wavelength 493.90 nm (weight=0.057730)
Computing PSF 13/18 for wavelength 503.00 nm (weight=0.055124)
Computing PSF 14/18 for wavelength 512.10 nm (weight=0.053016)
Computing PSF 15/18 for wavelength 521.20 nm (weight=0.049779)
Computing PSF 16/18 for wavelength 530.30 nm (weight=0.046104)
Computing PSF 17/18 for wavelength 539.39 nm (weight=0.042822)
Computing PSF 18/18 for wavelength 548.49 nm (weight=0.019876)
Writing PSF to /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf00_psf.fits
Started at Mon May 12 16:03:44 2025
Finished at Mon May 12 16:03:47 2025
Writing template optional parameter file for tiny3 to /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf.tt3.
To continue PSF processing for ACS and WFC3, you must run tiny3 to resample
and distort the PSF. You may also process a simulated scene (see
the manual for details).
Just to distort the PSF, issue this command :
tiny3 tiny.param
Tiny Tim v7.5
Processing PSF for position 1/1 : (x,y) = 1020 181
Reading input PSF from /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf00_psf.fits.
Input critically-sampled undistorted PSF dimensions are 464 by 464 (0.013018 arcsec/pixel).
Mapping PSF onto distorted grid.
Convolving PSF with charge diffusion kernel.
Writing distorted PSF to /Users/avapolzin/Desktop/psf_testoutputs/acs/j8pu42ecq_flc_150d08m15.267s+2d09m52.304s_F475W_psf00.fits (146 by 146 pixels)
Started at Mon May 12 16:03:47 2025
Finished at Mon May 12 16:03:47 2025
[11]:
fig = plt.figure()
plt.imshow(hstpsf, vmin = np.nanpercentile(hstpsf, 20), vmax = np.nanpercentile(hstpsf, 97),
origin = 'lower', cmap = 'Greys')
plt.xlabel('x (pix)')
plt.ylabel('y (pix)')
[11]:
Text(0, 0.5, 'y (pix)')

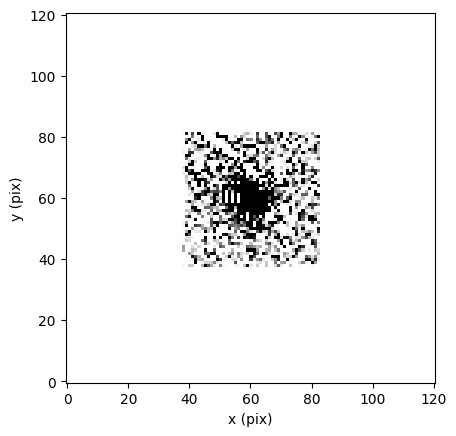

Empirical PSFs can also be generated for individual frames in this way. Below, we’ll use spike.psfgen.psfex, which automatically runs both SExtractor and PSFEx to return a model PSF.
[12]:
hstpsf = psfgen.psfex(coords = hstobj, img = hstimg, imcam = 'ACS/WFC', pos = hstpos,
writeto = False)
>
----- SExtractor 2.28.0 started on 2025-05-12 at 16:03:54 with 1 thread
> Setting catalog parameters
> Reading detection filter
> Initializing catalog
> Looking for j8pu42ecq_flc_mask.fits
----- Measuring from: j8pu42ecq_flc_mask.fits [1/3]
"Unnamed" / no ext. header / 4096x2048 / 32 bits (floats)
Detection+Measurement image: > Setting up background maps
> Setting up background map at line: 64
> Setting up background map at line: 128
> Setting up background map at line: 192
> Setting up background map at line: 256
> Setting up background map at line: 320
> Setting up background map at line: 384
> Setting up background map at line: 448
> Setting up background map at line: 512
> Setting up background map at line: 576
> Setting up background map at line: 640
> Setting up background map at line: 704
> Setting up background map at line: 768
> Setting up background map at line: 832
> Setting up background map at line: 896
> Setting up background map at line: 960
> Setting up background map at line: 1024
> Setting up background map at line: 1088
> Setting up background map at line: 1152
> Setting up background map at line: 1216
> Setting up background map at line: 1280
> Setting up background map at line: 1344
> Setting up background map at line: 1408
> Setting up background map at line: 1472
> Setting up background map at line: 1536
> Setting up background map at line: 1600
> Setting up background map at line: 1664
> Setting up background map at line: 1728
> Setting up background map at line: 1792
> Setting up background map at line: 1856
> Setting up background map at line: 1920
> Setting up background map at line: 1984
> Filtering background map(s)
> Computing background d-map
> Computing background-noise d-map
(M+D) Background: 69.5221 RMS: 9.94267 / Threshold: 1242.83
> Scanning image
> Line: 25 Objects: 3 detected / 0 sextracted
> Line: 50 Objects: 3 detected / 0 sextracted
> Line: 75 Objects: 3 detected / 0 sextracted
> Line: 100 Objects: 3 detected / 0 sextracted
> Line: 125 Objects: 3 detected / 0 sextracted
> Line: 150 Objects: 3 detected / 0 sextracted
> Line: 175 Objects: 3 detected / 0 sextracted
> Line: 200 Objects: 3 detected / 0 sextracted
> Line: 225 Objects: 3 detected / 0 sextracted
> Line: 250 Objects: 3 detected / 0 sextracted
> Line: 275 Objects: 3 detected / 0 sextracted
> Line: 300 Objects: 3 detected / 0 sextracted
> Line: 325 Objects: 3 detected / 0 sextracted
> Line: 350 Objects: 3 detected / 0 sextracted
> Line: 375 Objects: 3 detected / 0 sextracted
> Line: 400 Objects: 3 detected / 0 sextracted
> Line: 425 Objects: 3 detected / 0 sextracted
> Line: 450 Objects: 3 detected / 0 sextracted
> Line: 475 Objects: 3 detected / 0 sextracted
> Line: 500 Objects: 3 detected / 0 sextracted
> Line: 525 Objects: 3 detected / 0 sextracted
> Line: 550 Objects: 3 detected / 0 sextracted
> Line: 575 Objects: 3 detected / 0 sextracted
> Line: 600 Objects: 3 detected / 0 sextracted
> Line: 625 Objects: 3 detected / 0 sextracted
> Line: 650 Objects: 3 detected / 0 sextracted
> Line: 675 Objects: 3 detected / 0 sextracted
> Line: 700 Objects: 3 detected / 0 sextracted
> Line: 725 Objects: 3 detected / 0 sextracted
> Line: 750 Objects: 3 detected / 0 sextracted
> Line: 775 Objects: 3 detected / 0 sextracted
> Line: 800 Objects: 3 detected / 0 sextracted
> Line: 825 Objects: 6 detected / 0 sextracted
> Line: 850 Objects: 6 detected / 0 sextracted
> Line: 875 Objects: 6 detected / 0 sextracted
> Line: 900 Objects: 6 detected / 0 sextracted
> Line: 925 Objects: 6 detected / 0 sextracted
> Line: 950 Objects: 6 detected / 0 sextracted
> Line: 975 Objects: 6 detected / 0 sextracted
> Line: 1000 Objects: 6 detected / 0 sextracted
> Line: 1022 Objects: 6 detected / 0 sextracted
> Line: 1025 Objects: 6 detected / 1 sextracted
> Line: 1050 Objects: 6 detected / 1 sextracted
> Line: 1075 Objects: 6 detected / 1 sextracted
> Line: 1100 Objects: 6 detected / 1 sextracted
> Line: 1125 Objects: 6 detected / 1 sextracted
> Line: 1150 Objects: 6 detected / 1 sextracted
> Line: 1175 Objects: 6 detected / 1 sextracted
> Line: 1200 Objects: 6 detected / 1 sextracted
> Line: 1225 Objects: 6 detected / 1 sextracted
> Line: 1250 Objects: 6 detected / 1 sextracted
> Line: 1275 Objects: 6 detected / 1 sextracted
> Line: 1300 Objects: 6 detected / 1 sextracted
> Line: 1325 Objects: 6 detected / 1 sextracted
> Line: 1350 Objects: 6 detected / 1 sextracted
> Line: 1375 Objects: 6 detected / 1 sextracted
> Line: 1400 Objects: 6 detected / 1 sextracted
> Line: 1425 Objects: 6 detected / 1 sextracted
> Line: 1450 Objects: 6 detected / 1 sextracted
> Line: 1475 Objects: 6 detected / 1 sextracted
> Line: 1500 Objects: 6 detected / 1 sextracted
> Line: 1525 Objects: 7 detected / 1 sextracted
> Line: 1550 Objects: 7 detected / 1 sextracted
> Line: 1575 Objects: 7 detected / 1 sextracted
> Line: 1600 Objects: 7 detected / 1 sextracted
> Line: 1625 Objects: 7 detected / 1 sextracted
> Line: 1650 Objects: 7 detected / 1 sextracted
> Line: 1675 Objects: 7 detected / 1 sextracted
> Line: 1700 Objects: 7 detected / 1 sextracted
> Line: 1725 Objects: 7 detected / 1 sextracted
> Line: 1750 Objects: 7 detected / 2 sextracted
> Line: 1775 Objects: 7 detected / 3 sextracted
> Line: 1800 Objects: 7 detected / 3 sextracted
> Line: 1825 Objects: 8 detected / 4 sextracted
> Line: 1850 Objects: 8 detected / 4 sextracted
> Line: 1875 Objects: 8 detected / 4 sextracted
> Line: 1900 Objects: 8 detected / 4 sextracted
> Line: 1925 Objects: 10 detected / 4 sextracted
> Line: 1950 Objects: 10 detected / 4 sextracted
> Line: 1975 Objects: 10 detected / 4 sextracted
> Line: 2000 Objects: 10 detected / 4 sextracted
> Line: 2025 Objects: 10 detected / 4 sextracted
Objects: detected 10 / sextracted 8
> Closing files
>
> All done (in 0.2 s: 9057.8 lines/s , 35.4 detections/s)
> WARNING: This executable has been compiled using a version of the ATLAS library without support for multithreading. Performance will be degraded.
> WARNING: This executable has been compiled using a version of the FFTW library without support for multithreading. Performance will be degraded.
>
----- PSFEx 3.24.1 started on 2025-05-12 at 16:03:55 with 8 threads
>
----- 1 input catalogues:
j8pu42ecq_flc.cat : "no ident " 1 extension 8 detections
> Initializing contexts...
> Reading data from j8pu42ecq_flc...
> Computing final PSF model for j8pu42ecq_flc...
filename [ext] accepted/total samp. chi2/dof FWHM ellip. resi. asym.
> Computing diagnostics for j8pu42ecq_flc...
j8pu42ecq_flc 2/2 1.00 1.19 1.67 0.02 0.02 0.04
> Saving CHECK-image #1...
> Saving CHECK-image #2...
> Saving CHECK-image #3...
> Saving CHECK-image #4...
> Saving CHECK-image #5...
> Saving PSF model and metadata for j8pu42ecq_flc...
> Writing XML file...
>
> All done (in 4.0 s)
mv: test.psf: No such file or directory
rm: *.conv: No such file or directory
[13]:
fig = plt.figure()
plt.imshow(hstpsf, vmin = np.nanpercentile(hstpsf, 20), vmax = np.nanpercentile(hstpsf, 97),
origin = 'lower', cmap = 'Greys')
plt.xlabel('x (pix)')
plt.ylabel('y (pix)')
[13]:
Text(0, 0.5, 'y (pix)')
And the same for JWST:
[14]:
jwstpsf = psfgen.psfex(coords = jwstobj, img = jwstimg, imcam = 'NIRCam', pos = jwstpos,
writeto = False)
>
----- SExtractor 2.28.0 started on 2025-05-12 at 16:04:09 with 1 thread
> Setting catalog parameters
> Reading detection filter
> Initializing catalog
> Looking for jw02514162001_03201_00001_nrca2_cal_mask.fits
----- Measuring from: jw02514162001_03201_00001_nrca2_cal_mask.fits [1/3]
"Unnamed" / no ext. header / 2048x2048 / 32 bits (floats)
Detection+Measurement image: > Setting up background maps
> Setting up background map at line: 64
> Setting up background map at line: 128
> Setting up background map at line: 192
> Setting up background map at line: 256
> Setting up background map at line: 320
> Setting up background map at line: 384
> Setting up background map at line: 448
> Setting up background map at line: 512
> Setting up background map at line: 576
> Setting up background map at line: 640
> Setting up background map at line: 704
> Setting up background map at line: 768
> Setting up background map at line: 832
> Setting up background map at line: 896
> Setting up background map at line: 960
> Setting up background map at line: 1024
> Setting up background map at line: 1088
> Setting up background map at line: 1152
> Setting up background map at line: 1216
> Setting up background map at line: 1280
> Setting up background map at line: 1344
> Setting up background map at line: 1408
> Setting up background map at line: 1472
> Setting up background map at line: 1536
> Setting up background map at line: 1600
> Setting up background map at line: 1664
> Setting up background map at line: 1728
> Setting up background map at line: 1792
> Setting up background map at line: 1856
> Setting up background map at line: 1920
> Setting up background map at line: 1984
> Filtering background map(s)
> Computing background d-map
> Computing background-noise d-map
(M+D) Background: 0.281995 RMS: 0.0307562 / Threshold: 3.84453
> Scanning image
> Line: 25 Objects: 0 detected / 0 sextracted
> Line: 50 Objects: 0 detected / 0 sextracted
> Line: 75 Objects: 0 detected / 0 sextracted
> Line: 100 Objects: 0 detected / 0 sextracted
> Line: 125 Objects: 0 detected / 0 sextracted
> Line: 150 Objects: 0 detected / 0 sextracted
> Line: 175 Objects: 0 detected / 0 sextracted
> Line: 200 Objects: 1 detected / 0 sextracted
> Line: 225 Objects: 1 detected / 0 sextracted
> Line: 250 Objects: 1 detected / 0 sextracted
> Line: 275 Objects: 1 detected / 0 sextracted
> Line: 300 Objects: 1 detected / 0 sextracted
> Line: 325 Objects: 1 detected / 0 sextracted
> Line: 350 Objects: 1 detected / 0 sextracted
> Line: 375 Objects: 1 detected / 0 sextracted
> Line: 400 Objects: 1 detected / 0 sextracted
> Line: 425 Objects: 1 detected / 0 sextracted
> Line: 450 Objects: 1 detected / 0 sextracted
> Line: 475 Objects: 1 detected / 0 sextracted
> Line: 500 Objects: 1 detected / 0 sextracted
> Line: 525 Objects: 1 detected / 0 sextracted
> Line: 550 Objects: 2 detected / 0 sextracted
> Line: 575 Objects: 2 detected / 0 sextracted
> Line: 600 Objects: 2 detected / 0 sextracted
> Line: 625 Objects: 2 detected / 0 sextracted
> Line: 650 Objects: 2 detected / 0 sextracted
> Line: 675 Objects: 2 detected / 0 sextracted
> Line: 700 Objects: 2 detected / 0 sextracted
> Line: 725 Objects: 2 detected / 0 sextracted
> Line: 750 Objects: 2 detected / 0 sextracted
> Line: 775 Objects: 2 detected / 0 sextracted
> Line: 800 Objects: 2 detected / 0 sextracted
> Line: 825 Objects: 2 detected / 0 sextracted
> Line: 850 Objects: 2 detected / 0 sextracted
> Line: 875 Objects: 2 detected / 0 sextracted
> Line: 900 Objects: 2 detected / 0 sextracted
> Line: 925 Objects: 2 detected / 0 sextracted
> Line: 950 Objects: 2 detected / 0 sextracted
> Line: 975 Objects: 2 detected / 0 sextracted
> Line: 1000 Objects: 2 detected / 0 sextracted
> Line: 1025 Objects: 2 detected / 0 sextracted
> Line: 1050 Objects: 2 detected / 0 sextracted
> Line: 1075 Objects: 2 detected / 0 sextracted
> Line: 1100 Objects: 2 detected / 0 sextracted
> Line: 1125 Objects: 2 detected / 0 sextracted
> Line: 1150 Objects: 2 detected / 0 sextracted
> Line: 1175 Objects: 2 detected / 0 sextracted
> Line: 1179 Objects: 2 detected / 0 sextracted
> Line: 1200 Objects: 2 detected / 1 sextracted
> Line: 1225 Objects: 2 detected / 1 sextracted
> Line: 1250 Objects: 2 detected / 1 sextracted
> Line: 1275 Objects: 2 detected / 1 sextracted
> Line: 1300 Objects: 3 detected / 1 sextracted
> Line: 1325 Objects: 3 detected / 1 sextracted
> Line: 1350 Objects: 3 detected / 1 sextracted
> Line: 1375 Objects: 3 detected / 1 sextracted
> Line: 1400 Objects: 3 detected / 1 sextracted
> Line: 1425 Objects: 3 detected / 1 sextracted
> Line: 1450 Objects: 3 detected / 1 sextracted
> Line: 1475 Objects: 3 detected / 1 sextracted
> Line: 1500 Objects: 3 detected / 1 sextracted
> Line: 1525 Objects: 3 detected / 1 sextracted
> Line: 1550 Objects: 3 detected / 2 sextracted
> Line: 1575 Objects: 3 detected / 2 sextracted
> Line: 1600 Objects: 3 detected / 2 sextracted
> Line: 1625 Objects: 3 detected / 2 sextracted
> Line: 1650 Objects: 3 detected / 2 sextracted
> Line: 1675 Objects: 3 detected / 2 sextracted
> Line: 1700 Objects: 3 detected / 2 sextracted
> Line: 1725 Objects: 3 detected / 2 sextracted
> Line: 1750 Objects: 3 detected / 2 sextracted
> Line: 1775 Objects: 3 detected / 2 sextracted
> Line: 1800 Objects: 3 detected / 2 sextracted
> Line: 1825 Objects: 3 detected / 2 sextracted
> Line: 1850 Objects: 3 detected / 2 sextracted
> Line: 1875 Objects: 3 detected / 2 sextracted
> Line: 1900 Objects: 3 detected / 2 sextracted
> Line: 1925 Objects: 3 detected / 2 sextracted
> Line: 1950 Objects: 3 detected / 2 sextracted
> Line: 1975 Objects: 3 detected / 2 sextracted
> Line: 2000 Objects: 3 detected / 2 sextracted
> Line: 2025 Objects: 3 detected / 2 sextracted
Objects: detected 3 / sextracted 3
> Closing files
>
> All done (in 0.1 s: 19670.0 lines/s , 28.8 detections/s)
> WARNING: This executable has been compiled using a version of the ATLAS library without support for multithreading. Performance will be degraded.
> WARNING: This executable has been compiled using a version of the FFTW library without support for multithreading. Performance will be degraded.
>
----- PSFEx 3.24.1 started on 2025-05-12 at 16:04:09 with 8 threads
>
----- 1 input catalogues:
jw02514162001_03201_: "no ident " 1 extension 3 detections
> Initializing contexts...
> Reading data from jw02514162001_03201_00001_nrca2_cal...
> Computing final PSF model for jw02514162001_03201_00001_nrca2_cal...
> WARNING: 1st context group-degree lowered (not enough samples)
> WARNING: 1st context group removed (not enough samples)
filename [ext] accepted/total samp. chi2/dof FWHM ellip. resi. asym.
> Computing diagnostics for jw02514162001_03201_00001_nrca2_cal...
jw02514162001_032 1/1 1.00 0.21 1.35 0.02 0.03 0.03
> Saving CHECK-image #1...
> Saving CHECK-image #2...
> Saving CHECK-image #3...
> Saving CHECK-image #4...
> Saving CHECK-image #5...
> Saving PSF model and metadata for jw02514162001_03201_00001_nrca2_cal...
> Writing XML file...
>
> All done (in 0.0 s)
mv: test.psf: No such file or directory
rm: *.conv: No such file or directory
2025-05-12 16:04:09,951 - stpipe - WARNING - /Users/avapolzin/opt/anaconda3/envs/spike/lib/python3.10/site-packages/spike/tools/tools.py:446: Warning: PSF model is based on only a single component vector.
[15]:
fig = plt.figure()
plt.imshow(jwstpsf, vmin = np.nanpercentile(jwstpsf, 20), vmax = np.nanpercentile(jwstpsf, 97),
origin = 'lower', cmap = 'Greys')
plt.xlabel('x (pix)')
plt.ylabel('y (pix)')
[15]:
Text(0, 0.5, 'y (pix)')
In each case, the inputs and required arguments for the PSF generation functions are the same, and the spike.psfgen functions automates much of the innate complication of these PSF generation methods.
To now, the examples haven’t specifically written a model PSF to a dedicated .fits file. In the next cell, we’ll work through an entire example for an STDPSF, which includes just such an output file. spike will place the PSF in the context of the input image, so we’ll use spike.tools.cutout extract the region around the PSF itself. If spike.tools.cutout(*, save = True), a new .fits file will be generated that is cropped to the position of the PSF,while preserving the WCS of the
original image.
[16]:
hstobj = objloc('10:00:33.0178 +02:09:52.304')
hstpos = checkpixloc(coords = hstobj, img = hstimg, inst = 'ACS', camera = 'WFC')
hstpsf = psfgen.stdpsf(coords = hstobj, img = hstimg, imcam = 'ACS/WFC', pos = hstpos,
writeto = True)
[17]:
fig = plt.figure()
plt.imshow(hstpsf, vmin = np.nanpercentile(hstpsf, 20), vmax = np.nanpercentile(hstpsf, 99),
origin = 'lower', cmap = 'Greys')
plt.xlabel('x (pix)')
plt.ylabel('y (pix)')
[17]:
Text(0, 0.5, 'y (pix)')
Now we’ll read in the full PSF model that was saved:
[ ]:
modelpath = hstimg.split('j8pu42ecq_flc')[0]+'j8pu42ecq_150d08m15.267s+2d09m52.304s_F475W_topsf_flc.fits'
psfimg = fits.open(modelpath)
psfmod = psfimg[1].data
psfwcs = WCS(psfimg[1].header, psfimg)
fig = plt.figure()
plt.subplot(projection=psfwcs)
ax = plt.gca()
ax.coords[0].set_ticks(spacing = 30*u.arcsec)
ax.coords[1].set_ticks(spacing = 30*u.arcsec)
plt.imshow(psfmod, vmin = np.nanpercentile(psfmod[psfmod != 0], 20),
vmax = np.nanpercentile(psfmod[psfmod != 0], 75),
origin = 'lower', cmap = 'Greys')
plt.grid(color='k', ls='--', alpha = 0.5)
plt.xlabel('RA')
plt.ylabel('Dec')

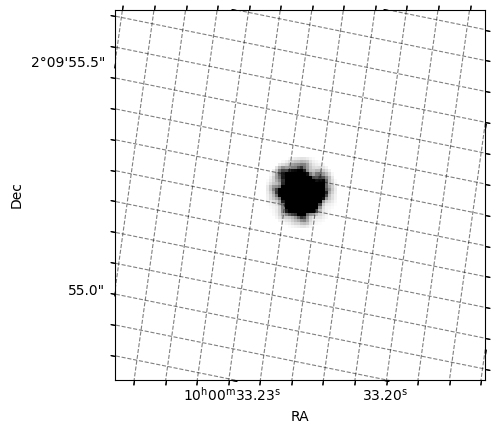

We can then crop the PSF using spike.tools.cutout. cutout will also output an array that contains the cropped region, but we’ll read it in to demonstrate that the WCS is preserved. The default FOV is 120 pix x 120 pix.
[19]:
psfcrop = cutout(img = modelpath, coords = hstobj, save = True)
[ ]:
modelpath = hstimg.split('j8pu42ecq_flc')[0]+'j8pu42ecq_150d08m15.267s+2d09m52.304s_F475W_topsf_crop_flc.fits'
psfimg = fits.open(modelpath)
psfmod = psfimg[1].data
psfwcs = WCS(psfimg[1].header, psfimg)
fig = plt.figure()
plt.subplot(projection=psfwcs)
ax = plt.gca()
ax.coords[0].set_ticks(spacing = 0.5*u.arcsec)
ax.coords[1].set_ticks(spacing = 0.5*u.arcsec)
plt.imshow(psfmod, vmin = np.nanpercentile(psfmod[psfmod != 0], 20),
vmax = np.nanpercentile(psfmod[psfmod != 0], 75),
origin = 'lower', cmap = 'Greys')
plt.grid(color='k', ls='--', alpha = 0.5)
plt.xlabel('RA')
plt.ylabel('Dec')
